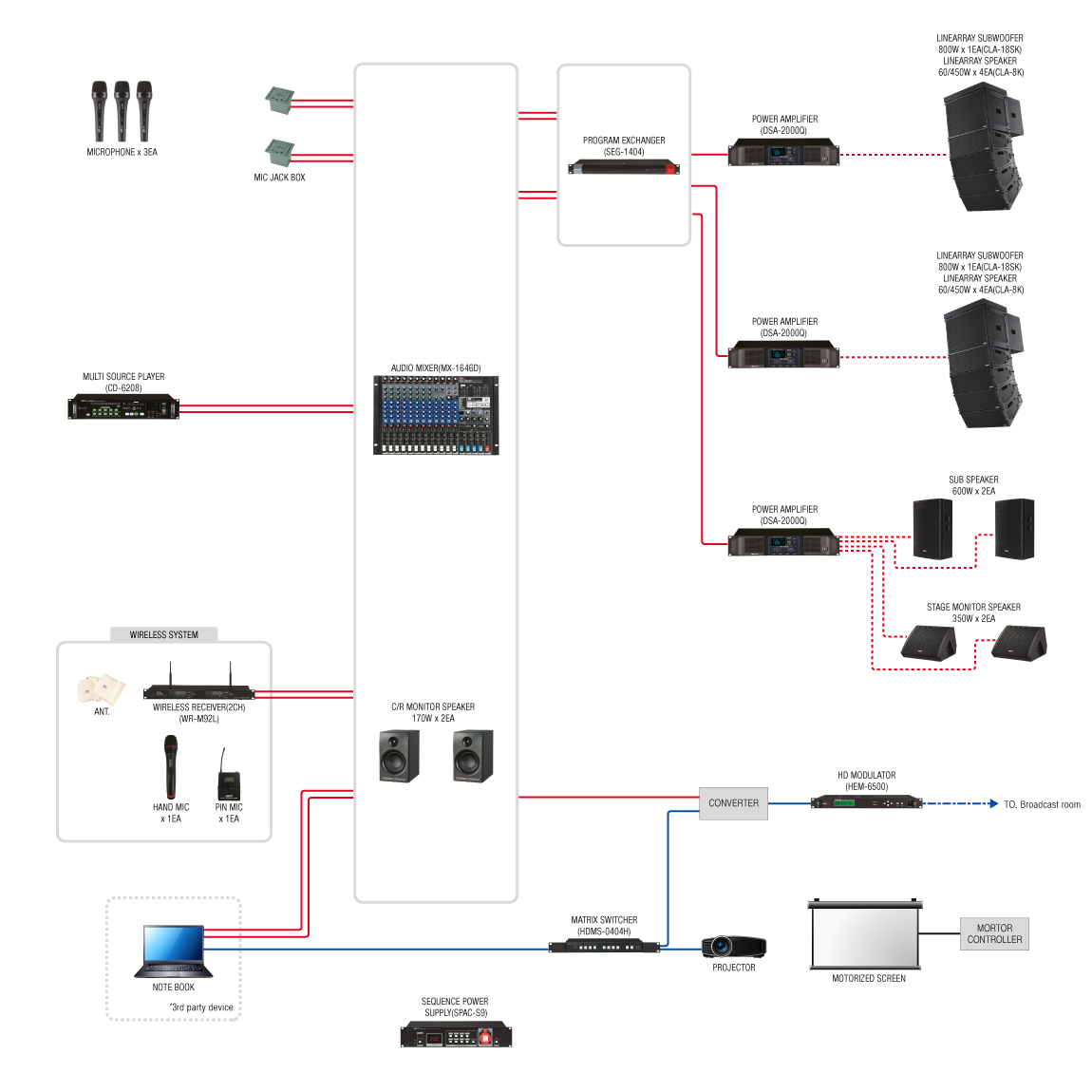

System configuration
Features
- To ensure large-scale events, sound pressure and clarity are secured by installing a high-powered speaker system and auxiliary speakers
- Volume and timbre control through audio mixer and sources such as wired and wireless microphones
- Stage monitor speaker for stage events
- Image projector and motorized screen to provide various contents of media
- Transmitting device that can transmit events in the multi-purpose auditorium to each classroom through the broadcasting room
Device Components
| 품명 | 규격 | 단위 | 수량 | 모델명 |
|---|---|---|---|---|
| ANALOG AUDIO MIXER | 16CH | EA | 1 | MX-1646D |
| DIGITAL SIGNAL PROCESSOR | 4 IN / 8 OUT | EA | 1 | CSP-4.8 |
| LINEARRAY SPEAKER | 60/450W | EA | 8 | CLA-8K |
| LINEARRAY SUBWOOFER | 800W | EA | 2 | CLA-18SK |
| LINEARRAY SPEAKER FRAME | STEEL | EA | 2 | CLA-8K FRAME |
| CHAIN BLOCK | 1ton | EA | 4 | CHAIN BLOCK-2 |
| POWERED SPEAKER | 170W | EA | 2 | CR5 |
| SPEAKER | 350W | EA | 2 | CMM-12K |
| SPEAKER EXT. CABLE | L-10m | EA | 2 | |
| SPEAKER | 600W | EA | 1 | PE15R |
| SPEAKER | 600W | EA | 1 | PE15L |
| SPEAKER BRACKET | STEEL | EA | 2 | SB-30HA |
| DIGITAL AMPLIFIER | 1200W x 4CH | EA | 3 | DSA-2000Q |
| WIRELESS RECEIVER | 900MHz / 2CH | EA | 1 | WR-M92L |
| WIRELESS HAND MIC | 900MHz | EA | 1 | WH-M91L |
| WIRELESS BELT MIC | 900MHz | EA | 1 | WB-M91L |
| WIRELESS ANTENNA | 900MHz | EA | 2 | EPA-9001 |
| MULTI SOURCE PLAYER | VIRTUAL CD | EA | 1 | CDR-01 |
| MICROPHONE | DYNAMIC | EA | 3 | MH80 |
| MICROPHONE | DYNAMIC | EA | 2 | MG18 |
| MICROPHONE BASE | STEEL | EA | 2 | MGM-C1 |
| 순차전원기 | AC 9CH | EA | 2 | SPAC-S9 |
| MODULATOR | HD | EA | 1 | HEM-6300 |
| VIDEO CONVERTER | HDMI+AUDIO to HDMI | EA | 1 | HAM-100 |
| A/V MATRIX SWITCHER | HD | EA | 1 | HDMS-0404H |
| PROGRAM EXCHANGER | 4CH | EA | 1 | SEG-1404 |
| CABINET RACK | 19" | EA | 1 | PA-401D |
| AV CONVERTER | HDMI TO UTP (TX/RX) | EA | 2 |
